CNC Machining Center - SD450 SD650

SD450 SD650

  • The bed and column are manufactured from high quality Meehanite cost iron and stress relieved for a lifetime of accuracy.
  • Box-type column construction, combined with scientific rib reinforcement for outstanding rigidity as well as excellent ability to dampen vibration, and reduce deflection and thermal displacement.
  • Precision linear guides are used on X, Y, Z-axes.

Table

MODEL
SD450
SD650
Table Size mm
400 x 550
500 x 700
T-slots mm
3 x 16 x 100
5 x 16 x 100
Loading capacity kgs
200
300

Movement

X Travel mm
450
650
Y Travel mm
350
450
Z Travel mm
400
550
Spindle nose to table - UL mm
100 - 500
100 - 650
Spindle center to column mm
540
540

Spindle

Spindle nose
BT-30
BT-40
Spindle Speeds - UL rpm
8000
8000
Transfer method belt type
belt type
belt type

Ball Screw

Grade
C5
C5
Pitch mm
5
5
X axis mm
32
32
Y axis mm
32
32
Z axis mm
32
32

Linear guide

X axis mm
30
30
Y axis mm
30
30
Z axis mm
30
30

Automatic tool changer ( option )

Magazine capacity
8 or 12
8 or 12
Tool selection Carousel ( Armless type )
Carousel ( Armless type )
Carousel ( Armless type )
Tool holder type
BT-30
BT-40
Max. Tool dia. mm
90
90
Max. Tool weight kgs
6
6
Air cylinder bia.
bia.63 mm x 255 L
bia.63 mm x 255 L
Min. pressure kgf / cm²
5
5

Performance

Positioning accuracy inch
± 0.005 mm / 300 mm
± 0.005 mm / 300 mm
Repeatability inch inch
± 0.003 mm / 300 mm
± 0.003 mm / 300 mm
Rapid traverse M/min
8
10
Feed rate mm/min
8000
8000

Motor

Spindle Motor HP
5
7.5
X Axis Motor NM
750
1K
Y Axis Motor NM
750
1K
Z Axis Motor NM
1K
1K
Coolant pump
1/8 HP
1/8 HP

Machine size

Floor space mm
1900 x 1770 x 1999
1900 x 2000 x 2000
Machine weight kgs
2000
2300

* The above machine specification is subject to change without previous notice due to the continuous improvement of R&D.

STANDARD ACCESSORIES

1. 8000 rpm belt spindle
2. Carousel tool bank 8 knives magazine type
3. 3-axis linear guide
4. 3-axis C5 ballscrew
5. 3-axis way covers
6. Auto-lubrication system
7. Coolant pump
8. Working light ( LED )
9. 3 color signal light
10. Full enclosed guarding
11. Tool box with tools

OPTIONAL ACCESSORIES

1. 12000 rpm belt driving spindle
2. Carousel tool bank 12 knives magazine type
3. Screw-type chip conveyors / Chain-type chip with cart
4. Controller : Mitsubishi . SIEMENS . FANUC
5. Transformer
6. Roller type liner Guide

Automatic Tool Changer ( optional )

Automatic Tool Changer ( optional )

The carousel-type magazine allows for loading with 8 tools or 12 tools.
Tool shank is BT30 or BT40.
Tool change can be quickly accomplished in 8 seconds ( tool to tool ).

Precision Rigid Spindle

Precision Rigid Spindle

Powerful spindle is equipped with class P5 preloaded angular bearings to guarantee exceptional rigidity and heavy duty cutting.

OPTIONAL ACCESSORIES

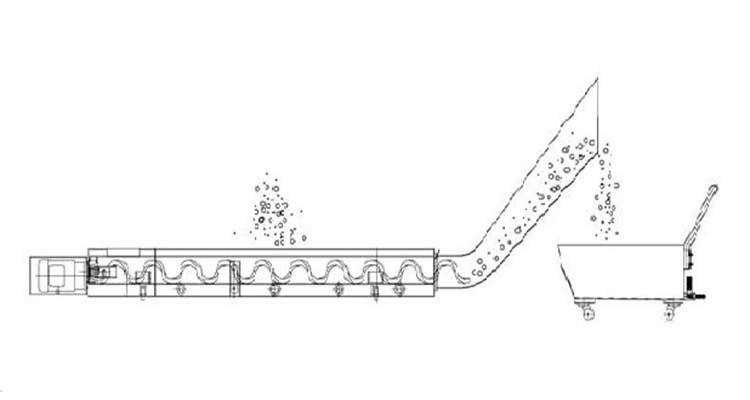

Screw type chip-conveyor

Screw type chip-conveyor

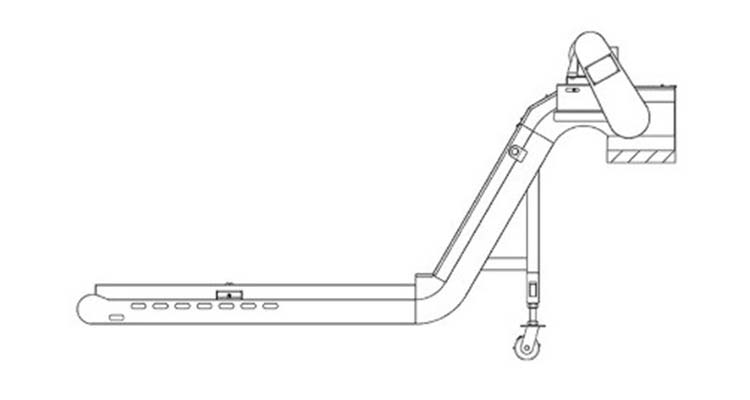

Chain type chip-conveyor

Chain type chip-conveyor

CONTROLLER

FANUC
Mitsubishi Electric
Siemens
fagor Automaçao

Inquiry

Mill & Lathe

Mill & Lathe
