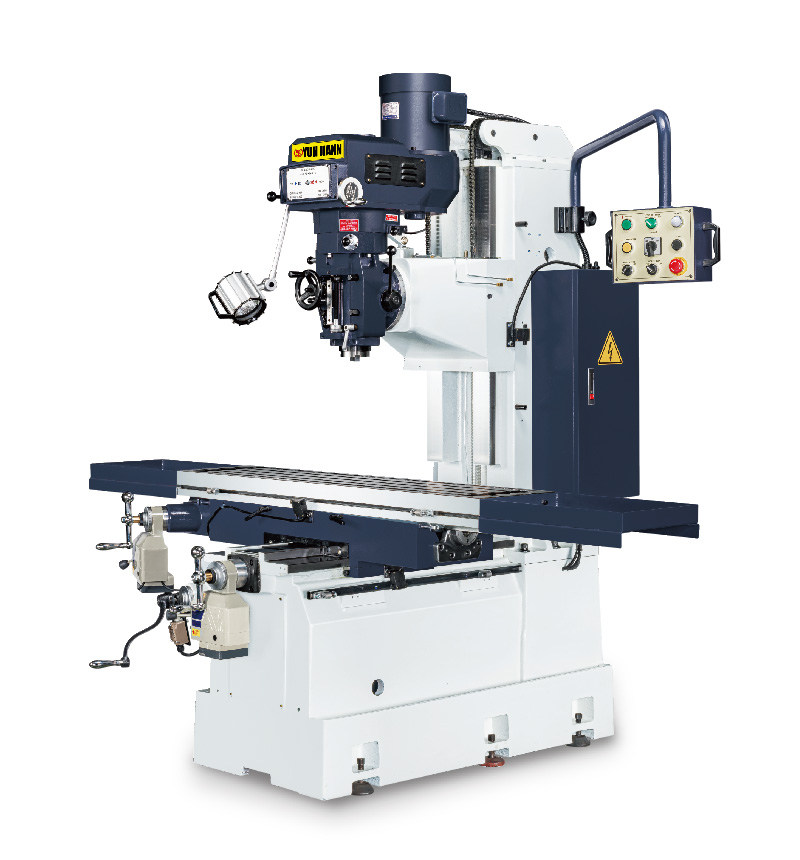

YS-6BVA YS-6BVS YS-6BIV

YS-6BVA - Step Speed Head
YS-6BVS - Variable Speed Head
YS-6BIV - Inverter Variable Speed Head

5 HP Spindle Motor
X/Y slide way with Turcite-B
X dovetail slide way
Y / Z square slide way
Harden & ground on X / Y / Z axis

Spec YS-6BVA YS-6BVS YS-6BIV

UNIT : mm / 60Hz

MODEL

YS-6BVA

YS-6BVS

YS-6BIV

Table size ( L x W ) mm

1370 x 305 ( 54" x 12" ) / 1524 x 305 ( 60" x 12" ) opt.

T slot ( W x No. x Dist.)

3 x 16 mm x 63 mm

Slideway hardened & surface ground

YES

Table surface hardened & ground

YES

Slideway dovetail "V" or square "SQ"

X = V YZ = SQ

X axis ( Manual travels ) mm

880 / 1100

Y axis mm

490

Z axis mm

650

Distance from spindle nose to table surface mm

50 - 700

Distance from spindle center to column mm

410

Head swiver angle ( R / L )

±90°

Head tilting angle ( up / down )

±45°

Spindle main motor HP

Spindle speeds rpm. ( step pulley )

80-2720 ( 8 steps ) / 80-5440 ( 16 steps )

Spindle speeds rpm. ( Mechanical Variable )

70-4200

Spindle speeds rpm. ( Inverter Variable )

70-4200

Spindle taper

ISO 40

Spindle travel mm

127

Quill feed rate mm/rev

0.04 / 0.08 / 0.15

Quill diameter mm

100

Machine Net weight kgs

1350

* The above machine specification is subject to change without previous notice due to the continuous improvement of R&D.

STANDARD ACCESSORIES

1. Draw bar
2. Slide way cover
3. Tools and toolbox
4. Operate manual and parts list
5. One shot lub.

OPTIONAL ACCESSORIES

1. Air power draw bar
2. Table guard
3. Chip pan
4. Work light
5. Spindle guard
6. CE electric
7. Coolant system
8. Column guard
9. Counter balance

YS-6BVA YS-6BVS YS-6BIV

Spec YS-6BVA YS-6BVS YS-6BIV

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

OPTIONAL ACCESSORIES

Z axis rapid up / down

Halogen worklight

Auto lubrication

Power feed ( X, Y, Z Axis )

Air power draw bar

Gear power table fees ( for X , Y axis )

Safety spindle guard

Chip pan

MECHANICAL HEAD

VA series

IV series

VS series
