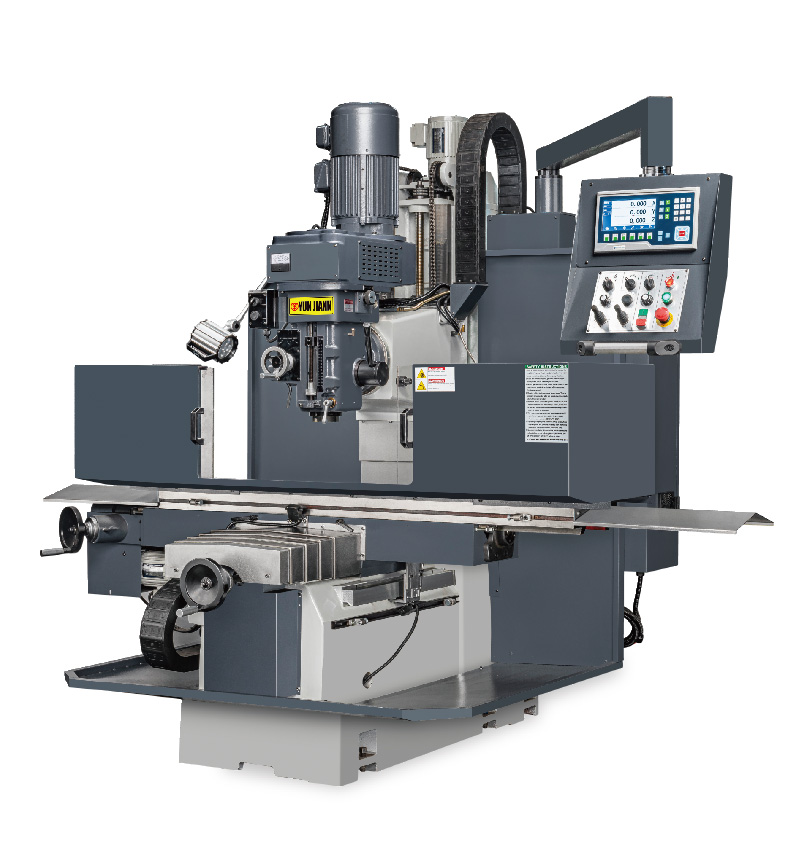

YS-6BIVG

YS-6BIVG - Inverter Variable Speed Head

5 HP Spindle Motor
X/Y slide way with Turcite-B
X dovetail slide way
Y / Z square slide way
Harden & ground on X / Y / Z axis
X, Y, Z inverter auto feed

Spec YS-6BIVG

UNIT : mm / 60Hz

MODEL

YS-6BIVG

Table Size mm

1524 x 350 ( 60" x 12" )

T-Slot ( W x No. )

16 mm x 3

Spindle Taper

ISO 40

Spindle Speeds rpm

60-3600 ( Inverter )

Spindle Motor HP

Spindle Travel mm

140

Quill Feed Rate mm/rev

0.03, 0.07, 0.14

Quill Diameter

85.7

X / Y / Z Travel mm

1000 / 480 / 560

X / Y Feed Rate mm

30 - 1000

Z axis Rapid Feed Rate mm

30 - 1000

X Axis Motor HP

1/2

Y Axis Motor HP

1/2

Z Axis Motor HP

Coolant pump HP

1/8

Machine Net Weight kgs

2016

* The above machine specification is subject to change without previous notice due to the continuous improvement of R&D.

STANDARD ACCESSORIES

1. Draw bar
2. Slide way cover
3. Tools and toolbox
4. Operate manual and parts list
5. Mental way cover
6. Auto Lub
7. Column guard
8. Coolant system

OPTIONAL ACCESSORIES

1. Air power draw bar
2. Table guard
3. Work light
4. Spindle guard
5. CE electric

YS-6BIVG

Spec YS-6BIVG

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

OPTIONAL ACCESSORIES

Halogen worklight

Auto lubrication

Safety spindle guard

Air power draw bar
