Turret Mill YS-6KVA YS-6KVS YS-6KIV | Turret Mill Supplier, High Precision Taiwan Turret Mill

YS-6KVA YS-6KVS YS-6KIV

YS-6KVA - Step Speed Head
YS-6KVS - Variable Speed Head
YS-6KIV - Inverter Variable Speed Head

5 HP Spindle Motor
X/Y slide way with Turcite-B
X dovetail slide way
Y / Z square slide way
Harden & ground on X / Y / Z axis

Spec YS-6KVA YS-6KVS YS-6KIV

UNIT : mm / 60Hz

MODEL

YS-6KVA

YS-6KVS

YS-6KIV

Table size ( L x W ) mm

1370 x 305 ( 54" x 12" ) / 1524 x 305 ( 60" x 12" ) opt.

T slot ( W x No. x Dist.)

3 x 16 mm x 63 mm

Slideway hardened & surface ground

YES

Table surface hardened & ground

YES

Slideway dovetail "V" or square "SQ"

X = V YZ = SQ

X axis ( Manual travels ) mm

800 / 1100 opt.

Y axis mm

380

Z axis mm

480

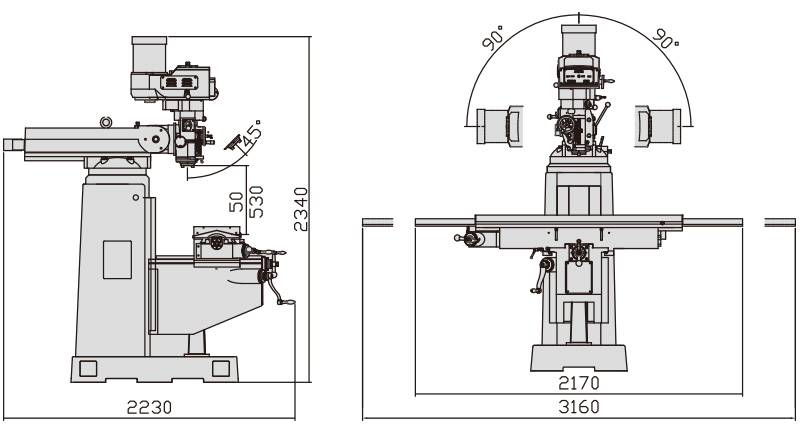

Distance from spindle nose to table surface mm

50 - 530

Distance from spindle center to column mm

220 - 750

Travel reduced with power feed ( X axis ) mm

None

Head swiver angle ( R / L )

±90°

Head tilting angle ( up / down )

±45°

Spindle main motor HP

Spindle speeds rpm. ( step pulley )

80-2720 ( 8 steps ) / 80-5440 ( 16 steps )

Spindle speeds rpm. ( Mechanical Variable )

70-4200

Spindle speeds rpm. ( Inverter Variable )

70-4200

Spindle taper

ISO 40

Spindle travel mm

127

Quill feed rate mm/rev

0.04 / 0.08 / 0.15

Quill diameter mm

100

Machine Net weight kgs

1400

* The above machine specification is subject to change without previous notice due to the continuous improvement of R&D.

MECHANICAL HEAD

VA series

Step Speed Head

IV series

Inverter Variable Speed Head

VS series

Variable Speed Head

STANDARD ACCESSORIES

1. Draw bar
2. Slide way cover
3. Tools and toolbox
4. Operate manual and parts list
5. One shot lub.

OPTIONAL ACCESSORIES

1. Air power draw bar
2. Table guard
3. Chip pan
4. Work light
5. Spindle guard
6. CE electric
7. Coolant system
8. Power feed
9. Z axis rapid feed

YS-6KVA YS-6KVS YS-6KIV

Spec YS-6KVA YS-6KVS YS-6KIV

MECHANICAL HEAD

VA series

IV series

VS series

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

OPTIONAL ACCESSORIES

Z axis rapid up / down

Halogen worklight

Auto lubrication

Power feed ( X, Y, Z Axis )

Air power draw bar

Gear power table fees ( for X , Y axis )

Safety spindle guard

Chip pan
